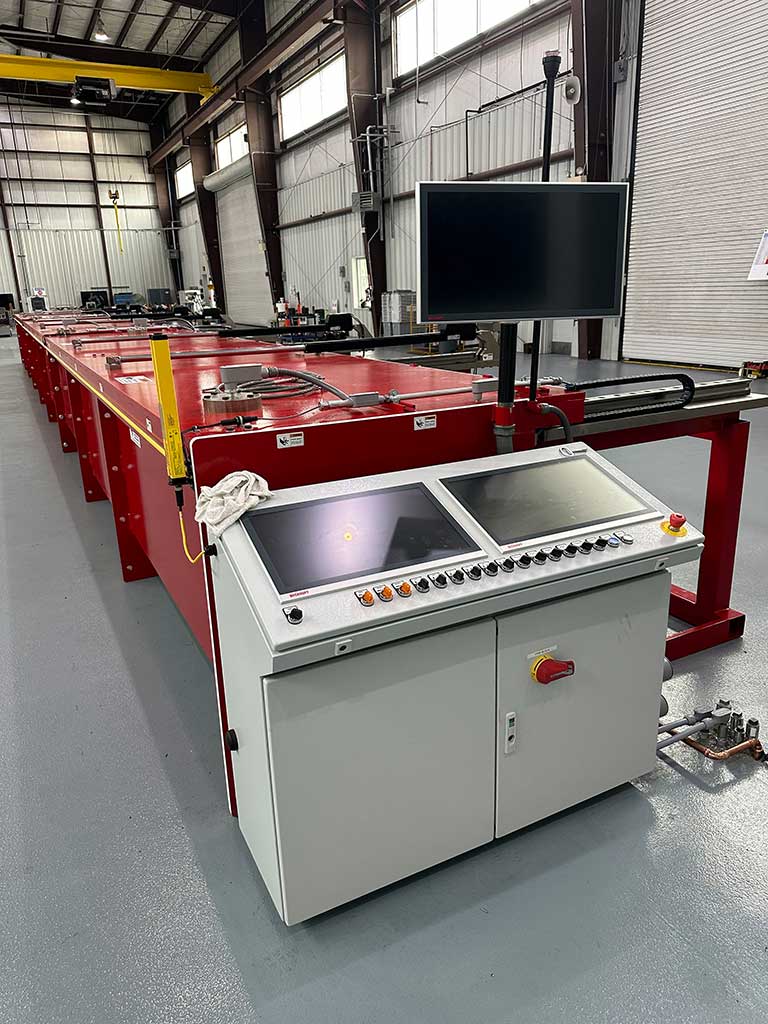

High-Pressure Hydrostatic Test Enclosure – Large Chamber

Pressure Testing Systems

Why is hydrostatic testing essential for industrial safety and compliance?

Hydrostatic testing is a critical non-destructive method used to verify the leak-tightness, structural integrity, and safety of pressurized vessels, pipelines, and industrial components. Subjecting materials to high-pressure water or other test fluids helps detect leaks, weaknesses, or structural defects that could lead to catastrophic failures.

Xilix Systems, a leader in hydrostatic testing solutions, engineers and manufactures high-performance enclosures to meet rigorous industry standards.

Our High-Pressure Hydrostatic Test Enclosure – Large Chamber ensures precise pressure control, automated monitoring, and enhanced safety measures, providing unmatched reliability for industries such as oil and gas, manufacturing, medical, and nuclear power.

Xilix: Safety First.

Key Features

Why are Xilix hydrostatic testing products essential for high-pressure safety and performance?

Key Features

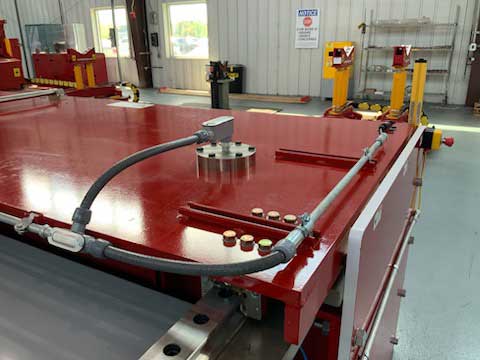

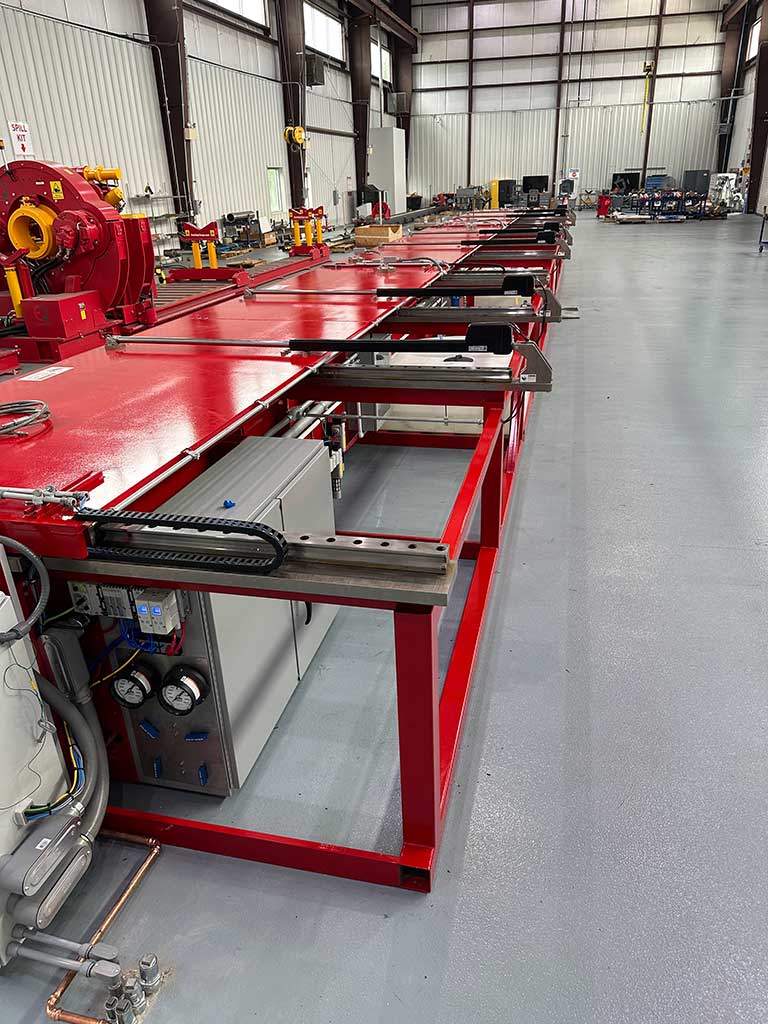

  • Modular Large Chamber Design – Engineered in 20-ft modular sections, the horizontal chamber can be configured up to 100 ft in length, accommodating a  wide range of industrial applications. Vertical chambers are available for testing.
  • Wide Pressure Range – Capable of handling pressures from 1,000 PSI to 100,000 PSI, meeting diverse industrial testing needs.
  • Electric Actuated Part Supports – Allows precise positioning of test components, ensuring stability and ease of testing.
  • Advanced Safety Systems – Equipped with safety bumpers, light curtains, and beacon lights to prevent operational hazards and enhance workplace safety.
  • Integrated PTZ Cameras – Eight internal high-resolution cameras provide real-time monitoring and analysis of test results.

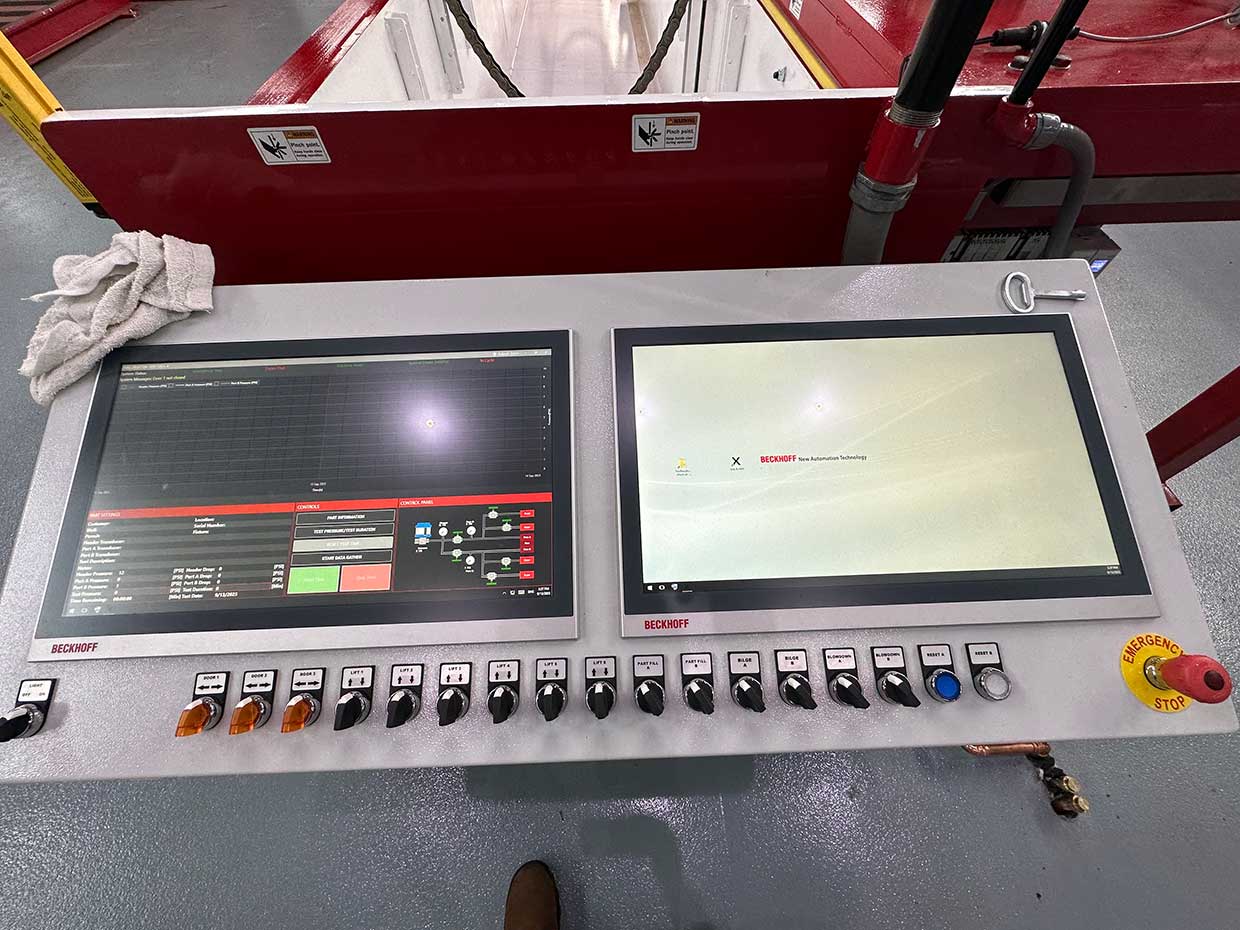

  • Automated Data Logging & Control Screens – Features dual control panels and monitoring systems for conducting multiple tests simultaneously.

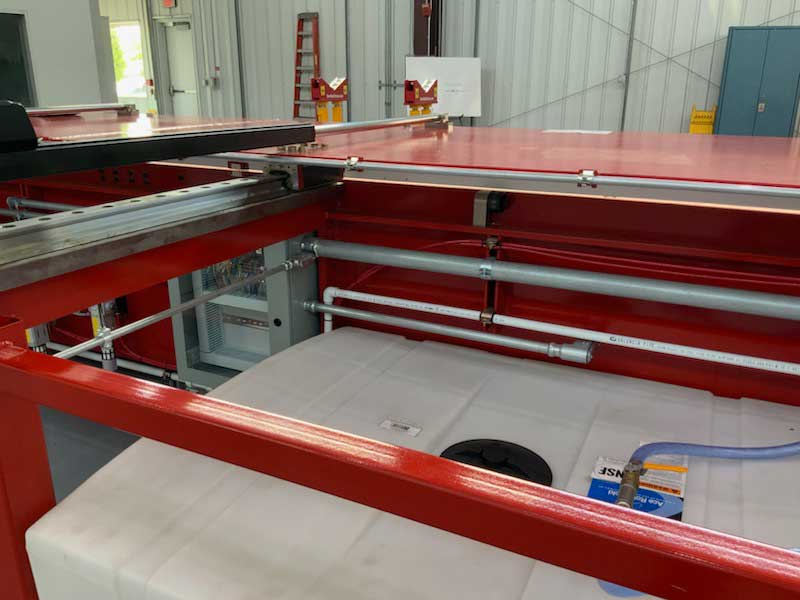

  • Closed-Loop Water System – Designed for efficient water reclamation, filtration, and reuse, reducing waste and optimizing cost-efficiency.

Benefits / Advantages

What are the benefits of using the Xilix High-Pressure Hydrostatic Test Enclosure – Large Chamber?

  • Superior Operator Safety – Reinforced enclosures and emergency stop mechanisms protect personnel from high-pressure risks.
  • Industry Compliance & Quality Assurance – Meets stringent safety standards and provides automated test result documentation.
  • Multi-Test Capability – Conduct up to two independent tests simultaneously, improving efficiency and throughput.
  • Customizable Configurations – Modular design allows custom sizing and features to meet specific industry needs.
  • Eco-Friendly Water Reclamation – Reduces water waste and operational costs with an integrated closed-loop filtration system.
  • High-Precision Testing – Advanced sensors and monitoring ensure accurate leak detection and structural integrity analysis.
  • Durability & Longevity – Built in the USA with heavy-duty materials to withstand extreme pressure conditions for long-term use.



Product Specifications

  • Modular Chamber Lengths: Available in 20-ft sections, configurable up to 100 ft
  • Test Pressures:

Standard Pressure: 1,000, 3,000, 5,000 PSI

High & Ultra-High Pressure: 10,000, 22,500, 30,000 up to 100,000 PSI

  • Testing Capabilities:

Leak Down

Hydrostatic

Drip Testing

Autofrettage

Burst Testing

  • Integrated Safety Features: Light curtains, safety bumpers, emergency stop mechanisms
  • Monitoring: Eight PTZ cameras for real-time analysis
  • Automation & Data Logging: Dual control screens, automated test cycles, and real-time pressure monitoring

Why Xilix Systems

Why choose Xilix Systems for your hydrostatic testing needs?

  • Unmatched Engineering Expertise – With decades of experience, Xilix Systems delivers cutting-edge hydrostatic testing solutions tailored to industry requirements.
  • Reliable, Custom-Built Solutions – Every test enclosure is designed for maximum safety, efficiency, and adaptability, ensuring compliance with international standards.
  • Global Industry Experience – Trusted worldwide in oil & gas, machine tools, nanotechnology, packaging, medical, and nuclear power sectors.

Xilix Systems. Engineering Tomorrow’s Automation for Hydrostatic Testing Equipment.
