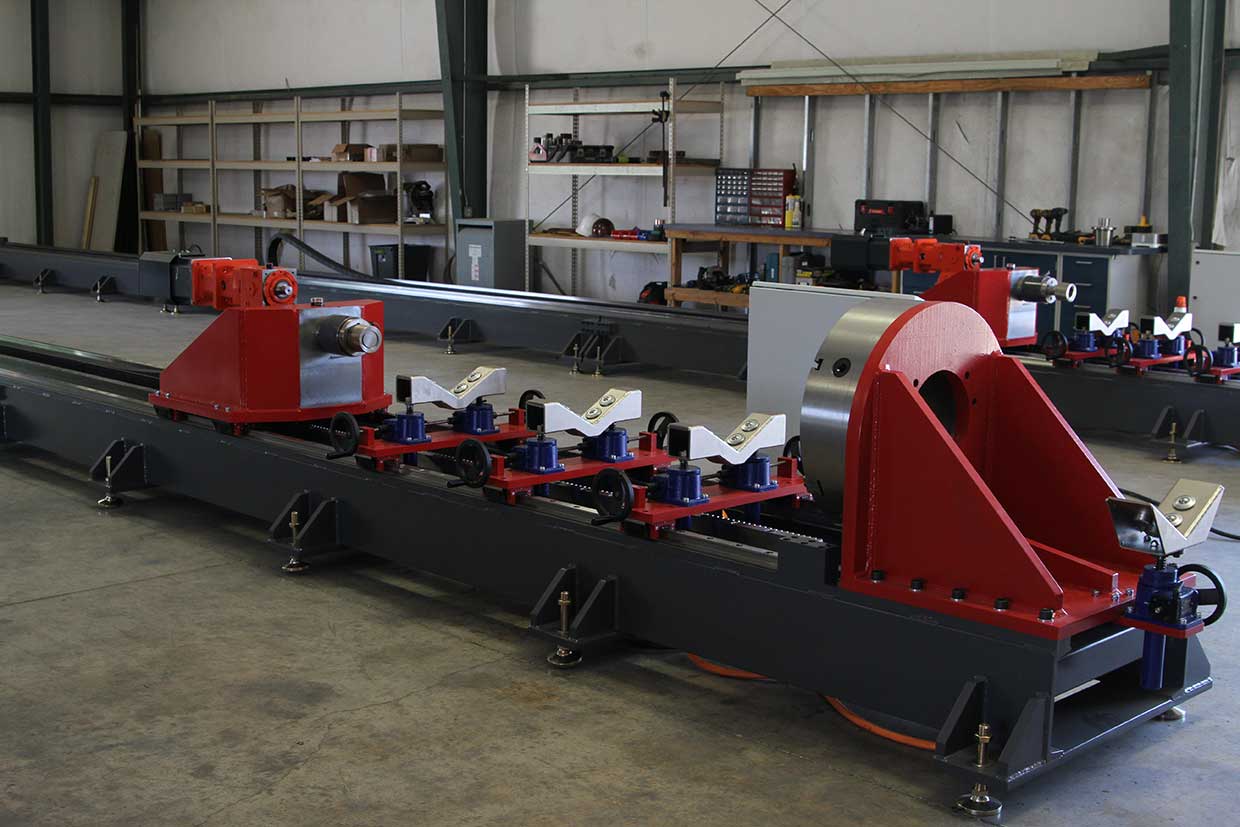

Stabbing Machine-Downhole Tool Assembly Equipment

Specialty Custom Equipment

Xilix Systems, Hutto, TX, proudly engineers, designs, and manufactures state-of-the-art stabbing machines, made in the USA, to meet the demanding downhole tool machinery needs of the oilfields and gas industry.

The Xilix downhole tool system is built for efficiency, precision, and durability. Our stabbing machines eliminate the challenges of assembling and disassembling high-value downhole tools while maximizing operational safety and minimizing tool damage.

Whether you’re assembling tools for completion or refurbishing returned assets, Xilix Systems’ customizable modular stabbing machines are the industry standard for ensuring seamless performance and cost savings.

Key Features

Advanced Engineering Meets Practical Efficiency

Downhole Tube System Streamlined Assembly and Disassembly

For decades, traditional methods of assembling downhole tools relied on manual labor and forklifts, often leading to inaccurate fittings, damaged tools, extended assembly time, and expensive materials that became wasted resources.

Xilix Systems’ stabbing machine changes the fabrication with a production process by enabling precise, automated assembly with a single operator. With our innovative push-pull mechanism:

  • Assembly time is reduced from hours or days to as little as 20 minutes.
  • Tools are handled with a smooth, continuous motion, preventing damage caused by stop-start methods.
  • Operators can assemble tools up to 100 feet in length, ensuring adaptability to your needs.

Unmatched Precision and Control

At the heart of our stabbing machine is advanced load-cell computer-programmed technology capable of measuring forces up to 50,000 lbs. This ensures:

  • Accurate alignment and force application during assembly.
  • Traceability of forces and positions, allowing operators with joystick-controlled functions to identify any machining or fitting issues.
  • Protection for smaller, delicate tools through customizable force pressure limits.

Customizable Modular Design

Xilix knows downhole tools’ requirements and specifications by understanding that every operation has unique requirements. That’s why the Xilix stabbing machines for downhole tools offer:

  • Modular bed lengths expandable sections from 20 to 100 feet to accommodate a range of tool sizes depending on each product. Customize daily to the project.
  • Adjustable force settings tailored to your operational needs.
  • Optional safety features, including full-length light curtains for enhanced operator protection.
  • Push-pull, Assembly, or Disassembly features.
  • Custom paint and branding options to align with your company’s identity.

Benefits / Advantages

Efficiency Gains

With Xilix Systems’ stabbing machine, a single operator can complete assemblies in a fraction of the time, freeing up resources for other critical tasks while improving profitability and productivity.

Cost Savings

Preventing damage to just one $500,000 tool can justify the investment in Xilix stabbing system. Over time, the machine’s durability and efficiency offer unparalleled ROI. The savings also include the best way to minimize human error, and protect expensive tools

Data-Driven Performance

The Xilix stabbing downhole tool fabrication systems chart and record critical assembly data, providing operators and engineers with insights into force application, alignment, and overall tool performance.

Enhanced Safety

By reducing manual labor and implementing safety features, Xilix machines are recognized to ensure a safer work environment while maintaining high productivity levels.

Built for the Oil and Gas Industry

Xilix Systems’ stabbing machines are purpose-built for the assembly and disassembly of downhole tools used in well completion and other phases of oil and gas operations. From valves to instrumentation tools, our machines are designed to handle even the most challenging applications with ease.

Why Xilix Systems

Why Choose Xilix Systems?

Made in the USA: Designed and manufactured with the highest standards of quality and reliability.

Industry Expertise: Decades of experience in engineering solutions for the oil and gas sector as well as for automotive, food sector, medical, and various industries requiring fabrication needs.

Tailored Solutions: Fully customizable to meet the unique demands of your operation.

Proven Performance: Trusted by leading companies for reliable and efficient tool assembly.
